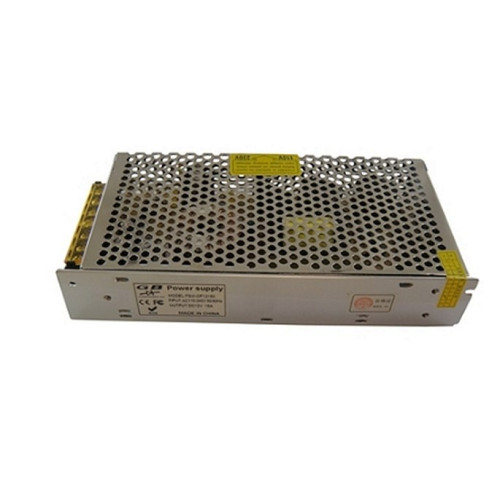

FSW-OF12-10A

Material: Aluminum 105

Endure heat above 105?

Thickness: 0.2-0.3mm

3*RI?0.1mm

Angle: 2.5mm

12V 10A

The purpose of the document is to specify the functional requirements of a 120W AC/DC Switch

Power.

2?INPUT CHARACTERISTICS:

2.1. Input Voltage:

Nominal Voltage: 85-130V / 176 - 264Vac (switch)

2.2. Input Frequency:

Nominal Frequency:47- 63Hz

2.3. Input Current: 1.5A.

1.5 Arms max. at any input voltage and rated, DC output rated load.

2.4. Inrush Current:

25?, 240Vac 20A.

20Amps max. cold start at 240 Vac input, with rated load and 25?C ambient.

2.5. AC (AC Leakage Current):

220 Vac, 0.25mA.

0.25mA max at 220Vac input
