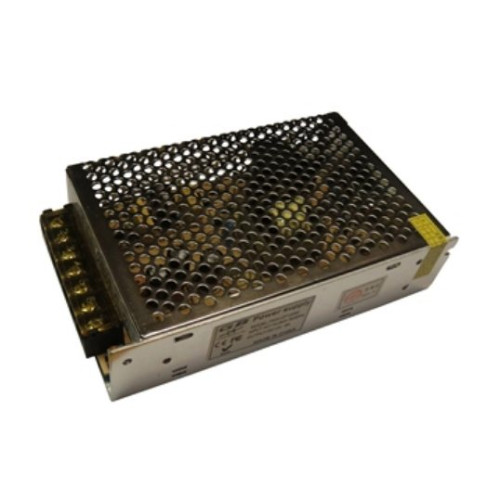

Fuente Switching 12V 5Amp 60Watts OPEN-FRAME

Type

FSW-OF12-5A

DC output voltage

12V

Rated output current

5A

Output current range

0~5A

Wave and noise

100mVp-p

DC output power

60W

Efficiency

82%

Error

?1%

CASE

P15-4

Adjustable range for DC voltage Rated output voltage?10%

Input voltage range

110~240VAC

Input current (At 230VAC)

1.2A

Ac inrush current (At 230VAC)

25A

Leakage current

<0.5mA/240VAC

Overload protection

105%~150% Cut output auto recovery

Starting ,rising ,keeping time

200ms, 100ms, 30ms

Withstand voltage

I/P-O/P:1.5KvAC 1min I/P-FG:1.5KvAC 1min O/P-FG:0.5KvAC 1min

Work temperature

-10?~ +60?, 20%~90%RH

weight

0.44kgs
