Rated Average On-State Current 25A

Mounting Type Through Hole

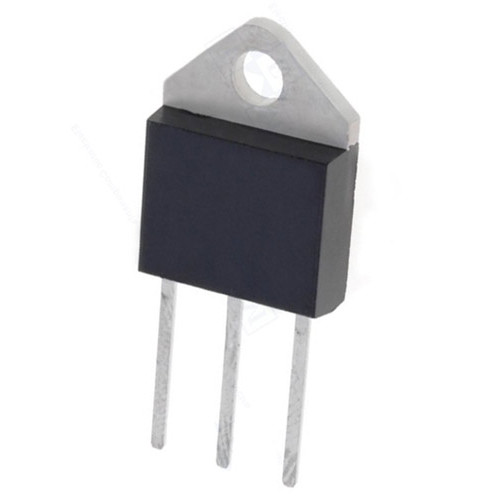

Package Type TOP3

Maximum Gate Trigger Current 100mA

Repetitive Peak Reverse Voltage 600V

Surge Current Rating 260A

Pin Count 3

Maximum Gate Trigger Voltage 1.3V

Repetitive Peak Forward Blocking Voltage 600V

Maximum Holding Current 80mA

Dimensions 15.5 x 4.6 x 12.85mm

Length 15.5mm

Width 4.6mm

Height 12.85mm

Peak On-State Voltage 1.55V

Repetitive Peak Off-State Current 0.005mA

Minimum Operating Temperature -40 ?C

Maximum Operating Temperature +125 ?C
